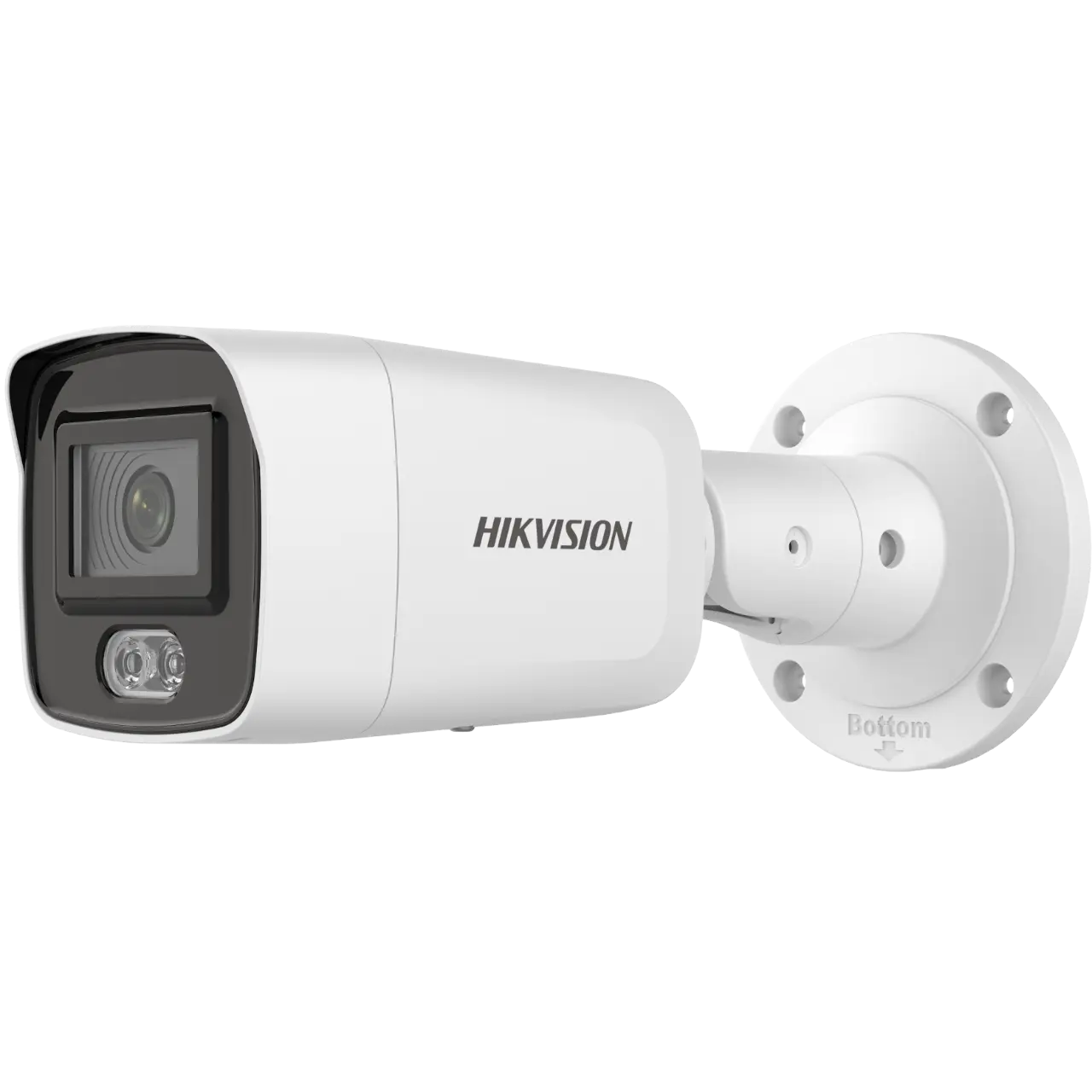

Camera IP DS-3047G2-LUF-AI Hikvision

Camera DS-3047G2-LUF-AI Hikvision tại Hải Phòng

Camera IP Trụ 4MP có màu 24/7
+ Cảm biến 1/3″ Progressive Scan CMOS
+ Chuẩn nén H.265+/H.265/H.264+/H.264
+ Độ nhạy sáng 0.001 Lux @F1.0, 0 Lux với đèn trợ sáng
+ Độ phân giải tối đa: 4 Megapixel (2560 × 1440) 25fps
+ Tầm xa đèn trợ sáng ban đêm lên đến 30m
+ Ống kính 4mm
+ Chống ngược sáng 120dB WDR, BLC, HLC, 3D DNR
+ AI Tính năng Phát hiện vượt hàng rào ảo, phát hiện xâm nhập
+ AI Tính năng phát hiện chuyển động phân biệt người và phương tiện
+ Tích Hợp Míc
+ Hỗ trợ thẻ nhớ lên đến 256GB
+ Chuẩn IP67

Công ty cung cấp và lắp đặt Camera DS-3047G2-LUF-AI Hikvision tại Hải Phòng

Camera Gia Minh

Hotline: 0914100119
Email: anninhgiaminh@gmail.com
Address: 595 Đ. Thiên Lôi, Kênh Dương, Lê Chân Hải Phòng, Việt nam 180000

Rate this product

Thương Hiệu	HIKVISION
Thông số kỹ thuật	Máy Ảnh Image Sensor 1/1.8" Progressive Scan CMOS Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light Shutter Speed 1/3 s to 1/100,000 s Slow Shutter Yes P/N P/N Wide Dynamic Range 130 dB Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° Lens Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional Iris Type Fixed Lens Mount M16 Focal Length & FOV 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134° 4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115° 6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69° Aperture F1.0 DORI DORI 2.8 mm: D: 58 m, O: 23 m, R: 11 m, I: 2 m 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m Illuminator Supplement Light Type White Light White Light Range Warm white LEDs (3000 K) Up to 40 m Smart Supplement Light Yes Video Max. Resolution 2688 × 1520 Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Third stream is supported under certain settings. Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) Fourth stream is supported under certain settings. Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG *Third stream and fourth stream are supported under certain settings. Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile H.264+ Main stream supports H.265+ Main stream supports Bit Rate Control CBR/VBR Scalable Video Coding (SVC) H.264 and H.265 encoding Region Of Interest (ROI) 5 fixed regions for main stream and sub-stream Audio Environment Noise Filtering Yes Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Network Simultaneous Live View Up to 6 channels API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets User/Host Up to 32 users. 3 user levels: administrator, operator and user Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Image SNR ≥ 52 dB Day/Night Switch Auto, Schedule Target Cropping Yes Image Enhancement BLC, HLC, 3D DNR Image Parameters Switch Yes Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Interface Alarm 1 input, 1 output (max. 12 VDC, 30 mA) Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port Audio 1 input (line in), max. input amplitude: 3.3 vpp, input impedance:4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max.output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium,mono sound On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB Hardware Reset Yes Power Output 12 VDC, max. 100 mA (supported by all power supply types) Event Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event Unattended baggage detection, object removal detection, scene change detection, audio exception detection Deep Learning Function Face Capture Yes Perimeter Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection General Linkage Method Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning Firmware Version V5.5.112 Web Client Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter Software Reset Yes Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Power Supply 12 VDC ± 25% PoE: 802.3af, Type 1, Class 3 Power Consumption And Current 12 VDC, 0.6 A, max. 7 W PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 8.5 W Power Interface Ø5.5 mm coaxial power plug Camera Dimension 78.8 mm × 78.6 mm × 235.9 mm (3.1" × 3.1" × 9.3") Package Dimension 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6") Camera Weight Approx. 860 g (1.9 lb.) With Package Weight Approx. 1250 g (2.8 lb.) Approval EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection IP67 (IEC 60529-2013)

Thương Hiệu

HIKVISION

Thông số kỹ thuật

Máy Ảnh Image Sensor 1/1.8" Progressive Scan CMOS Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light Shutter Speed 1/3 s to 1/100,000 s Slow Shutter Yes P/N P/N Wide Dynamic Range 130 dB Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° Lens Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional Iris Type Fixed Lens Mount M16 Focal Length & FOV 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134° 4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115° 6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69° Aperture F1.0 DORI DORI 2.8 mm: D: 58 m, O: 23 m, R: 11 m, I: 2 m 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m Illuminator Supplement Light Type White Light White Light Range Warm white LEDs (3000 K) Up to 40 m Smart Supplement Light Yes Video Max. Resolution 2688 × 1520 Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings. Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG *Third stream and fourth stream are supported under certain settings. Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile H.264+ Main stream supports H.265+ Main stream supports Bit Rate Control CBR/VBR Scalable Video Coding (SVC) H.264 and H.265 encoding Region Of Interest (ROI) 5 fixed regions for main stream and sub-stream Audio Environment Noise Filtering Yes Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Network Simultaneous Live View Up to 6 channels API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets User/Host Up to 32 users. 3 user levels: administrator, operator and user Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Image SNR ≥ 52 dB Day/Night Switch Auto, Schedule Target Cropping Yes Image Enhancement BLC, HLC, 3D DNR Image Parameters Switch Yes Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Interface Alarm 1 input, 1 output (max. 12 VDC, 30 mA) Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port Audio 1 input (line in), max. input amplitude: 3.3 vpp, input impedance:4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max.output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium,mono sound On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB Hardware Reset Yes Power Output 12 VDC, max. 100 mA (supported by all power supply types) Event Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event Unattended baggage detection, object removal detection, scene change detection, audio exception detection Deep Learning Function Face Capture Yes Perimeter Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection General Linkage Method Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning Firmware Version V5.5.112 Web Client Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter Software Reset Yes Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Power Supply 12 VDC ± 25% PoE: 802.3af, Type 1, Class 3 Power Consumption And Current 12 VDC, 0.6 A, max. 7 W PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 8.5 W Power Interface Ø5.5 mm coaxial power plug Camera Dimension 78.8 mm × 78.6 mm × 235.9 mm (3.1" × 3.1" × 9.3") Package Dimension 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6") Camera Weight Approx. 860 g (1.9 lb.) With Package Weight Approx. 1250 g (2.8 lb.) Approval EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection IP67 (IEC 60529-2013)
